Quality challenges have evolved from being purely data-driven to deeply rooted in complexity, strategic planning, and seamless collaboration across departments. While the classic 7 QC Tools remain the bedrock of data-driven quality control, they often fall short when teams face problems that involve strategy, planning, and intangible root causes. That’s where the New 7 QC Tools come in.

Developed to tackle problems that are difficult to quantify, these tools support organizations in mapping out ideas, relationships, dependencies, and risks. Instead of analysing variation after something goes wrong, these tools help teams prevent issues at the planning stage. In this blog, we’ll explore what these tools are, how they compare to the traditional QC toolkit, and why using both—strategically—can power up your quality initiatives.

.

WHAT ARE THE NEW 7 QC TOOLS?

Also known as the Seven Management and Planning Tools, the new 7 QC Tools were developed in Japan in response to the need for more strategic, idea-centric tools. These tools don’t replace the old ones. They extend the quality toolbox to include non-quantitative problem-solving:

• Affinity Diagram
• Relations Diagram
• Tree Diagram
• Matrix Diagram
• Matrix Data Analysis
• Arrow Diagram
• PDPC (Process Decision Program Chart)

These tools are particularly useful during the planning and development phases of quality, innovation, or change management projects.

.

THE NEW 7 QC TOOLS EXPLAINED:

Affinity Diagram:

It is designed to make sense of a large volume of unorganized ideas especially in the early stages of problem-solving or strategy planning. It helps teams move from scattered thoughts to structured understanding by grouping similar items into categories based on their natural connection. A stakeholder map is usually applied once brainstorming sessions, surveys or gathering different feedback are complete. It helps everyone feel welcome and included, so everyone can offer their ideas without being judged in the grouping process.

This type of diagram is strong because it makes it possible to spot patterns that are not very obvious. It is often simple for teams to understand what matters most in their data by just looking at how it is organized. Using it helps when a problem involves many sources and opinions coming together.

Example: When a software company collects over 100 opinions from users of its mobile app. Grouping ideas under usability, performance and support helps them spot similar issues and focus on what requires attention first.

Relations Diagram:

The Relations Diagram helps teams understand how different ideas or issues influence one another within a complex system. After using an Affinity Diagram to group ideas, this tool takes it a step further by identifying cause-and-effect links between those elements. Arrows are used to visually map how one issue contributes to or impacts another—clarifying dependencies that often go unnoticed. It’s particularly useful when working with systems where there are multiple departments or conflicting responsibilities.

By determining which issues have the greatest impact, teams can focus on actions that have the most impact. This tool brings clarity to chaos and ensures that efforts are focused on root influencer not just symptoms. It empowers better decision-making in situations where complexity cloud judgment.

Example: In a hospital setting, the quality team used this tool to link delayed patient discharge to paperwork processing, senior doctor availability, and miscommunication—leading to targeted process changes.

Tree Diagram:

The Tree Diagram breaks down broad goals into smaller, actionable tasks in a logical, hierarchical structure. It is perfect for teams that need to transform strategic objectives into executable steps. This tool clarifies the “how” behind the “what,” enabling focused delegation of responsibilities. It encourages detailed thinking, ensuring that every component of a plan is addressed and nothing is missed.

Starting from a single goal, branches are drawn to represent the tasks required to achieve it, which are further subdivided as needed. This approach supports planning, implementation and accountability tracking. The Tree Diagram is highly visual and helps everyone stay aligned toward a common outcome.

Example: A school district wants to improve digital learning. The tree diagram branches into infrastructure upgrades, teacher training, student access tools, and content development—each with defined sub-steps and responsibilities.

Looking to build a stronger, planning-focused quality system? Discover our end-to-end 7qc Tools quality improvement services.

Matrix Diagram:

It is used to explore relationships between two or more categories, such as departments vs. responsibilities or goals vs. metrics. It helps teams analyze how different elements interact and which pairings are strong, weak, or missing altogether. This visual tool enables comparison and prioritization of elements that might not be obvious in standard lists or flowcharts. It’s often applied in product development, vendor selection, and compliance mapping.

Teams use symbols or scores to indicate relationship strength, allowing data-backed discussions on where to focus efforts. The Matrix Diagram reduces confusion, improves clarity, and supports smart resource allocation in decision-heavy environments.

Example: A hospital maps SOPs against team responsibilities using a Matrix Diagram, revealing overlapping roles and gaps in patient discharge coordination.

Matrix data analysis:

This tool brings a quantitative approach to complex relational problems. It merges data interpretation with relational thinking, helping teams not just map relationships but analyze them using measurable inputs. This tool is ideal when a project requires selecting the best combination of variables among many. Teams commonly use it in Six Sigma projects or any decision matrix involving numerical rankings.

It sharpens prioritization by applying statistical weights, enabling a more objective view of multifactor decisions. While it requires more effort and expertise to build, the insights it delivers are well worth it in high-stakes decisions. It’s especially useful in quality control, procurement, and system optimization projects.

Example: In a Six Sigma project, a team used matrix data analysis to evaluate combinations of factors affecting defect rates in packaging machines, pinpointing critical-to-quality (CTQ) elements.

Arrow Diagram:

Also called an Activity Network Diagram is used to map task sequences and timelines in project management. It’s excellent for scheduling, identifying dependencies, and discovering the critical path of a project. This tool shows the order in which tasks must occur and highlights which ones can run in parallel to save time. It is especially helpful in preventing delays by pinpointing bottlenecks or unaccounted waiting periods. Teams use it for planning product launches, engineering builds, and large-scale process rollouts.

The clear sequencing it provides helps allocate resources efficiently and reduce uncertainty. It’s a visual game-changer for keeping complex projects on track.

Example: A software company used an Arrow Diagram during a major product launch to map all pre-release activities and highlight critical paths—ensuring zero-day deployment success

PDPC (Process Decision Program Chart):

The Process Decision Program Chart (PDPC) is a tool for anticipating risks and preparing contingency plans before execution begins. It breaks down each action in a plan and outlines what could go wrong at each step. Teams then brainstorm countermeasures to either prevent the problem or mitigate its impact. This is essential for high-stakes or compliance-heavy projects where failure isn’t an option.

PDPC turns strategic planning into a proactive risk management exercise. It encourages forward thinking and improves resilience by forcing teams to imagine and prepare for worst-case scenarios. It’s widely used in engineering, construction, supply chain, and business continuity planning.

Example: An infrastructure firm used PDPC to foresee possible site delays in a metro construction project and proactively built mitigation steps—avoiding millions in delay penalties.

.

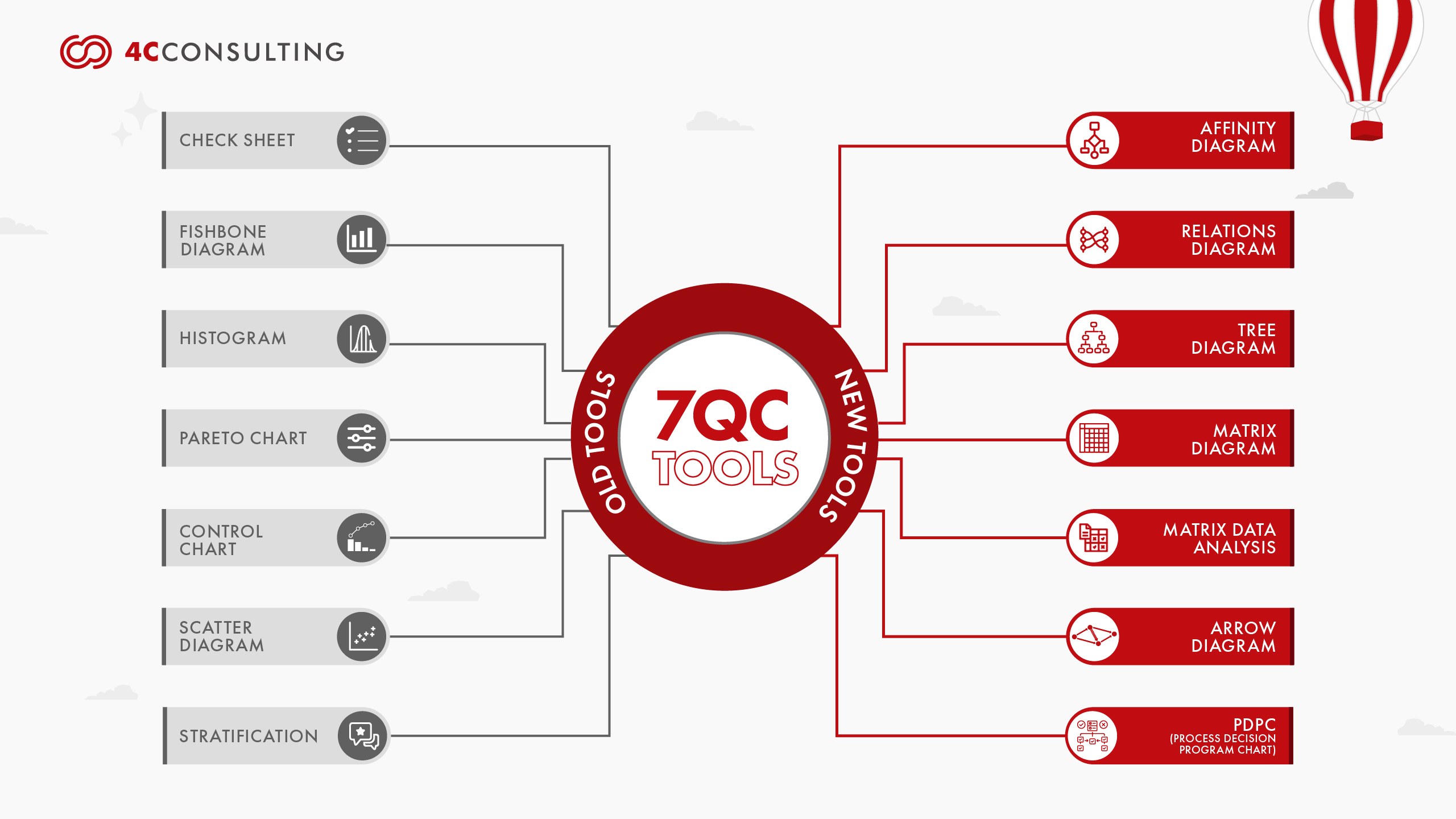

DIFFERENCE BETWEEN OLD AND NEW 7 QC TOOLS (TABLE)

Explore Classic QC Tools: Curious how the original QC tools still power today’s best quality systems?  Read our detailed 7 QC Tools blog here

.

BENEFITS OF THE NEW QC TOOLS:

• Strategic Planning Made Simple: Instead of rushing into action with half-baked ideas, these tools allow teams to design thoughtful, step-by-step plans. Tools like the Tree and Arrow Diagrams break complex projects into sequences and highlight critical points. This enables better resourcing, task ownership, and deadline management. The result is less confusion and fewer changes mid-way. Whether it’s a product launch, audit prep, or new factory setup, the planning strength of these tools saves time and money down the line.
• Understand Complex Systems: The Relations and Matrix Diagrams make invisible connections visible. Teams often operate in silos and miss how one action affects another—until it’s too late. These tools expose dependencies between tasks, roles, and results. It becomes easier to forecast impact before making decisions. That insight is especially useful when you’re juggling priorities across departments. When people understand how they influence each other, collaboration improves and friction decreases.
• Align Teams to Common Goals: Without clarity, even the best teams lose direction. The New QC Tools help transform abstract business goals into clear steps that each team or individual can follow. Using the Tree Diagram, management can distribute goals that align top-down and bottom-up. This ensures that daily operations feed into quarterly targets—and that no one is working blind. It boosts focus, accountability, and motivation. When every person sees their impact, performance naturally improves.
• Proactive Risk Management: One of the standout strengths of these tools is foresight. The PDPC, in particular, enables teams to anticipate what could go wrong at each stage and prepare countermeasures ahead of time. This approach helps avoid delays, safety issues, and non-compliance incidents. You don’t just react—you plan for resilience. Risk management becomes part of the planning culture, not a fire drill. This proactive mindset saves costs, reduces stress, and keeps critical projects on track no matter what surprises emerge.
• Enhanced Cross-Functional Collaboration: Many projects fail because of siloed thinking or lack of shared ownership. The New 7 QC Tools are designed for team-wide involvement. Their visual and participatory nature encourages everyone—from operators to executives—to contribute ideas and understand the plan. This boosts engagement and accountability. Solutions developed through collaboration are more practical and accepted faster. You also reduce friction between departments, creating a unified effort toward quality improvement. The result is smoother execution and a stronger team culture.

.
